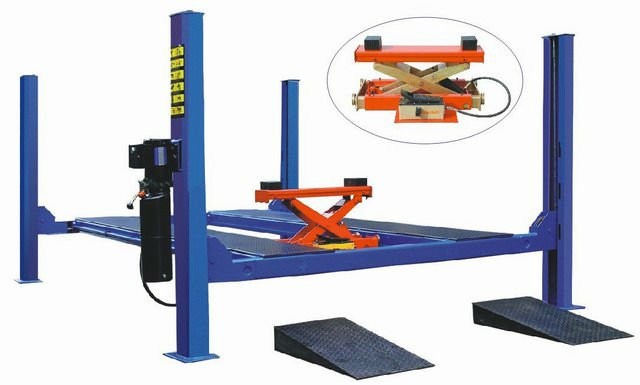

4 Post Alignment Lift
Features
1. Driven by hydraulic cylinder in stable lifting and lowering, it is used for lifting various small and medium-sized vehicles, with total weight of 4tons, 5.5tons, and 8tons and up to 20 tons in garage and workshop.2. The safety latches can guarantee people’s safety.
3. Four steel cables move synchronously and proof skidding in high efficiency. 4. Adjustable distance between runways accommodate different wheel tracks
5. Equipped with jack trolley guide rail
6. Optional electric jack, pneumatic jack and manual jack.
Parameters
| Lifting Capacity | 9000lbs/4000kg |
| Lifting Height | 65"/1650mm |
| Lifting Time | 50seconds |
| Overall Height | 80"/2020mm |
| Overall Width | 124"/3140mm |
| Overall Length | 183"/4650mm |
| Motor Voltage | 220V/380V |
| Frequency | 50Hz or 60Hz |
| Phase | 1Ph/3Ph |
| Net Weight | 2645bls/1200kg |
