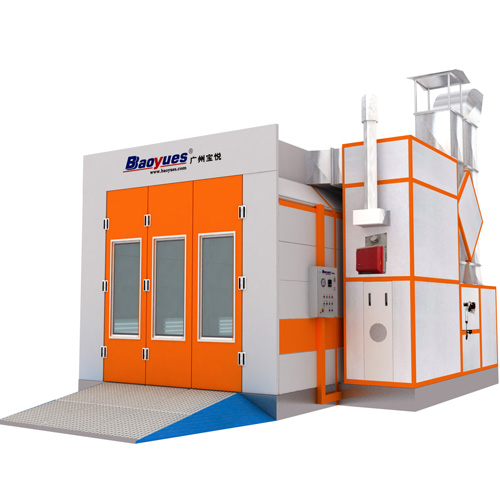

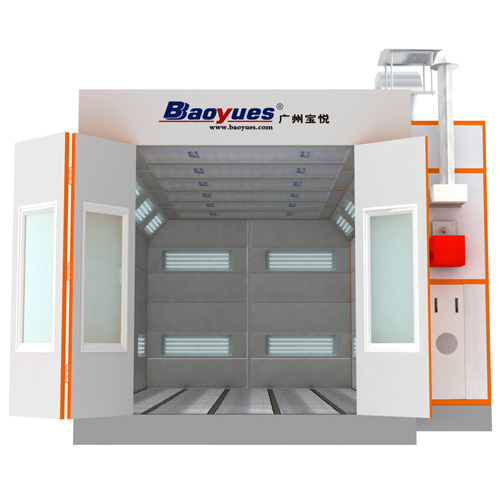

Downdraft Spray Booth

Description

Downdraft spray booth represents the most advanced technology. Air blows into the spray booth from roof. After purification, the air goes down through ceiling filter and exhaust from basement after twice filtration by the exhaust air filter. From this circulation, workers can have a clean and safe environment during the whole painting process.

Features of Downdraft Spray Booth

1. Full ceiling filter on roof
2.0.376mm color steel with EPS inside for wall panel
3. turbo fan, with air capacity of 21000m³/h
4. Pneumatic damper for spraying
5. All panels of downdraft spray booth are tongue and groove interlock structure.
6. Industry-leading light levels
7. The full downdraft paint booth has specific and dual voltage 36-watt light fixtures.
8. Booths include installation instructions, fan, motor & drive, fasteners, hardware, and necessary sealant for assembly.
9. Control panel and other electric components of downdraft spray booth can be purchased separately
10. The following spare parts are optional: Heat recovery system, Siemens motor, PLC control system, Siemens electric component, Rock wool panel, PU panel, Full grilles and LED lights.


Parameters of Full Downdraft Paint Booth

Inside dimension 6900×3900×2650mm(L×W×H)
Outside dimension 7000×5250×3400mm(L×W×H)
Front door Folding door, 3 folds, 3000×2600 mm(W×H), without frame cover, color : blue.
Emergency door 1 unit, 650×1800mm(W×H), color: Blue
Basement Galvanized steel, 300mm high, 2 rows of grilles and 3 rows of indented plates, painted. 2 ramps, 520×2000mm/pc.
Wall Panels Thickness: 50mm, width: 1150mm, tongue and groove structure, 0.376mm color steel with polystyrene (EPS) insulation inside, color: Blue.
Light Ceiling Lights: 8Units×4Pcs=32Pcs×36W, Side Lights: 8Units×2Pcs=16Pcs×36W, with electronic ballasts, lighting boxes are powered coated. Illuminate: ≥1200LUX
Generator cabinet Intake from rear side, exhaust from rear upper, quadrate steel frame; white coated steel covered, filled with heat preservation material inside.
Intake and Exhaust system Inlet: 1 unit 7.5KW turbo fan, air capacity is 21000m3/h.
Outlet:1 unit 7.5KW turbo fan, air capacity is 21000m3/h.
Heating system RIELLO G20 diesel burner, stainless steel heat exchanger, electric damper actuates from spraying to baking cycle. Max. heating productivity: 200000kcal/h, Max temperature: 80℃.
Purification system Pre-filter, ceiling filter, fiber glass filter, activated carbon filter
Roof Galvanized steel.
Control system Spraying, heat spraying, baking, time setting, lighting switch, temperature controller, failure indicator, power supply.
Total Power 18KW
