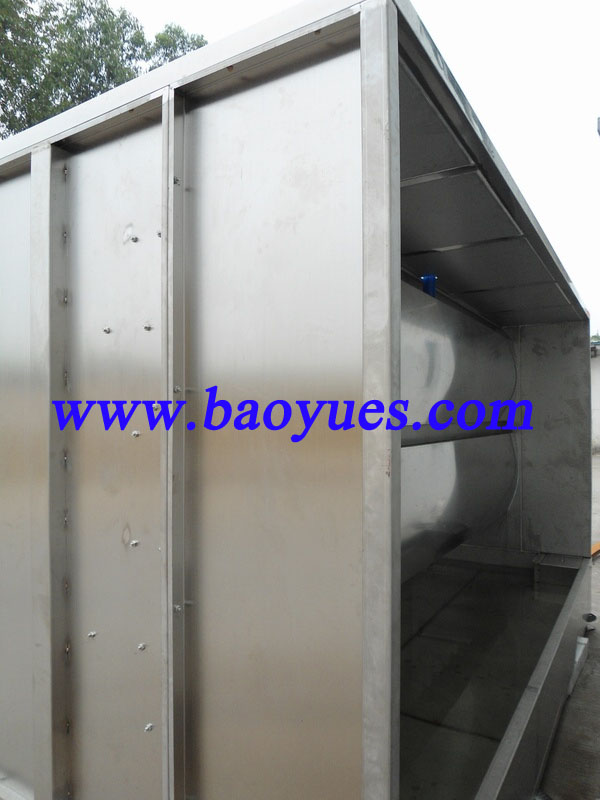

Water Curtain Spray Booth

Description

Water curtain spray booth is mainly used for the waste gas treatment for painting rooms. After several layers of water curtains, painting particles in the air will fall down and the air become clean. This process can improve the appearance of the products as well as protect the environment. As a kind of safe, reliable and environmental friendly device, our China water curtain spraying booth is easily operated and has reliable performance.


Features

1. Water curtain of water curtain spray booth collects the paint gas, no pollution for atmosphere.
2. The wall panel has 0.476mm color steel with rock wool inside.
3. Quality axial flow fan, with air capacity of 24500m³/h

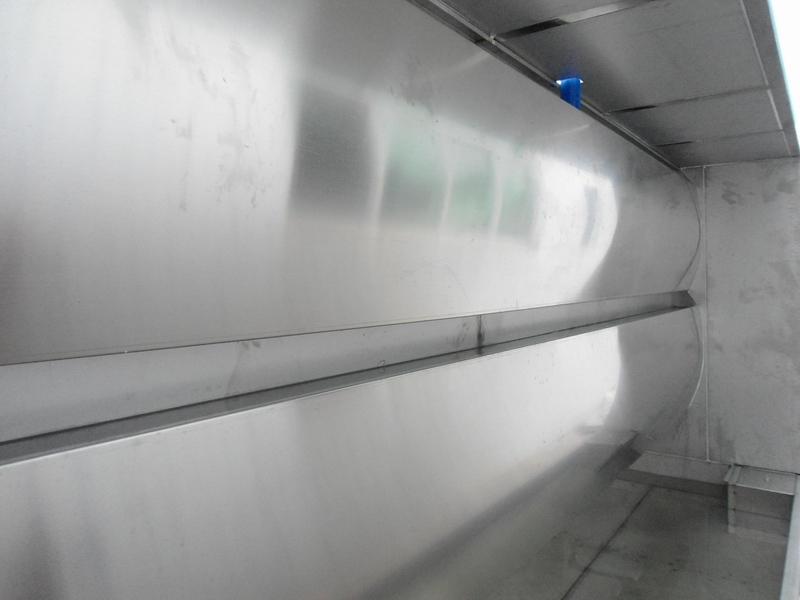

4. 1.5mm stainless steel for water curtain
5. The water curtain spray booth includes installation instructions, fan, motor & drive, fasteners, hardware, and necessary sealant for assembly.
6. Control panel and other electric components of China water curtain spraying booth can be purchased separately.
7. the following spare parts are optional: room body and heating system.


Advantages

Water Curtain spray booth use water curtain to collect paint gas. During painting process, the motor in water curtain works and draws the exhaust gas in the spray booth. After being filtered many times, the exhaust water drop into a water tank. This way won’t pollute the atmosphere outside. Besides that, it is easy operation and safe. This China water curtain spraying booth is an environment friendly and ideal device for you.


Parameters of Water Curtain Spray Booth

Item Detailed Specification
Inside dimension 6900×3900×2650 mm (L×W×H)
Outside dimension 8050×4000×2700mm (L×W×H)
Front door Folding door, 3 folds, 3000×2400 mm (W×H), without frame, aluminium alloy window frame, orange colour, door head and two batten on both sides white colour.
Emergency door 1 units, 650×1800mm (W×H), colour: white.
Basement No steel basement, exhaust from back side.
Wall panel&roof Thickness: 50mm, :1150mm, tongue and groove structure, 0.376mm colour steel with EPS inside, colour: white.
Light Ceiling Lights: 8Units×4Pcs=32Pcs×36W, with electronic ballasts, lighting boxes are powered coated.
Exhaust system Exhaust from the bottom of back side, 1 unit turbo fan, 5.5KW, air capacity: 18000m3/h.
Heating system No.
Purification system Pre-filter, fibreglass filter, activated carbon filter.
Control system Spraying, lighting switch, power supply switch, emergency stop.
Total power 7KW (Power supply 1×220V, 3×380V, 50HZ)
Unit price USD/set FOB Guangzhou
