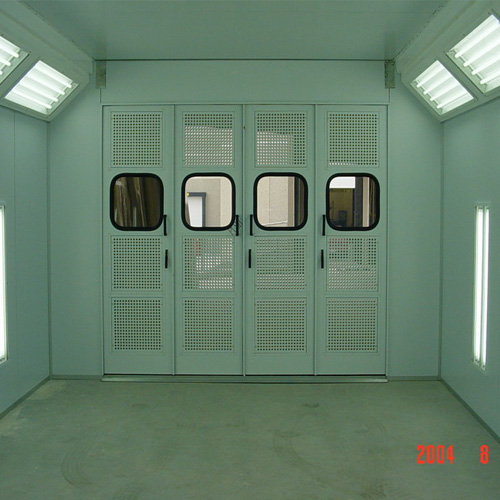

Cross Draft Spray Booth

Description

The airflow of cross draft spray booth flows from one end to another end. This kind of machine is low cost, easy installation and convenient use. Besides that, workers have good working environment. The China cross draft paint booth has good painting effect because of the balanced indoor temperature.


Features

1. Painting gas of cross draft spray booth exhausts from double side wall.
2. Lower cost than full downdraft spray booth
3. double-intake centrifugal fans
4. Pneumatic/electric damper for spraying
5. All panels have tongue and groove interlock structure.
6. Industry-leading light levels
7. The cross draft spray booth has specific and dual voltage 36-watt light fixtures.
8. The China cross draft paint booth includes installation instructions, fan, motor & drive, fasteners, hardware, and necessary sealant for assembly.
9. Control panel and other electric components can be purchased separately
10. The following spare parts are optional: heat recovery system and PLC control system.


Advantages

The Cross draft spray booth intakes fresh air through filters located in the product doors. The clean and filtered air is drawn through the booth and exhausted through an exhaust chamber at the opposite end. This type of China cross draft paint booth makes efficient use of shop space. It offers reverse flow designs.
The cross draft spray booth intakes air through filters located in the back wall. The access doors of solid-faced product are at the exhaust end of the booth. This provides cleaner intake filtering and better control of shop dust that might be tracked in at the vehicle entrance.


Parameters of China Cross Draft Paint Booth

Inside dimension 8600×6700×2800 mm (L×W×H)
Outside dimension 8700×10300×3250 mm (L×W×H)
Front door Folding door, 3 folds, 3000×2600 mm (W×H), without frame, filled with EPS inside, color: Blue
Emergency door 2 units, 800×2000mm (W×H), color: white
Basement Without basement, exhaust from double-side wall
Room body Top setting steel composite beam, Thickness: 50mm, width: 1150mm, tongue and groove structure, 0.376mm color steel with EPS insulation inside, color: white.
Light Ceiling Lights: 15Units×4Pcs=60Pcs×36W, side light: 12Units×4Pcs=48Pcs×18W, lighting boxes are powdered coated, with electronic ballasts.
Generator cabinet Intake from side upper, exhaust from back upper, galvanized steel frame; color steel panel covered, filled with heat preservation material in the middle.
Intake and Exhaust system
(2 sets)
Inlet:4units×4KW double intake centrifugal fans,model:YDW4.5L1, air capacity for each fan: 12500m3/h
Outlet:2×7.5KW double intake centrifugal fans, motor outside, belt dirve,model:TAE-500H,air capacity for each fan: 25000m3/h. with manual damper
Heating system 2 units RIELLO RG5S diesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 26000kcal/h.
Purification system Pre-filter, ceiling filter, fiber glass filter, activated carbon filter
Roof Galvanized steel
Control system Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter, temperature limit controller, pressure gauge, adjustable electric exhaust damper, Exhaust star-delta motor start.
Total power 35KW
